Industrial Park Expansion Power Distribution Project, Zhongshan
Confidential

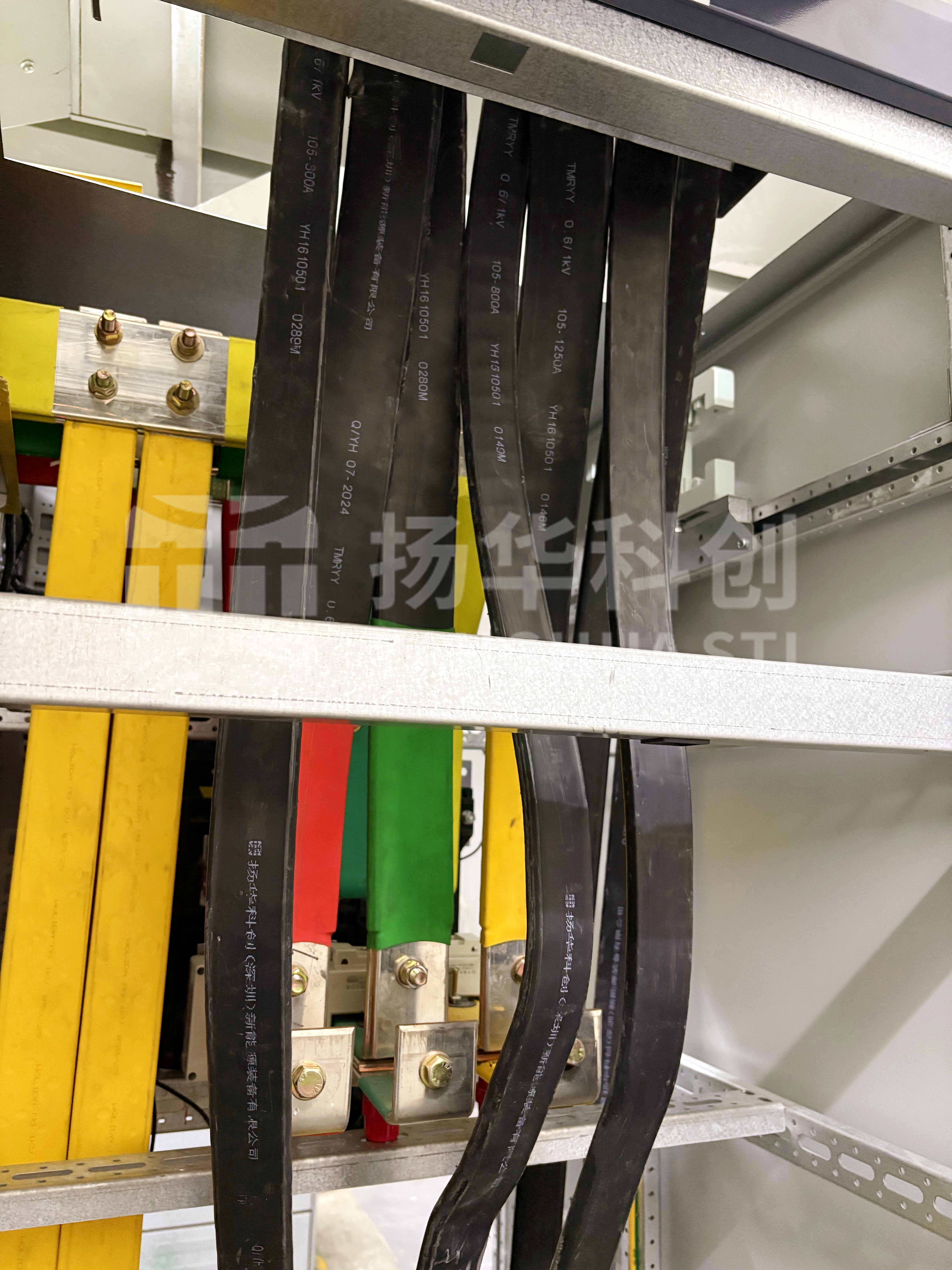

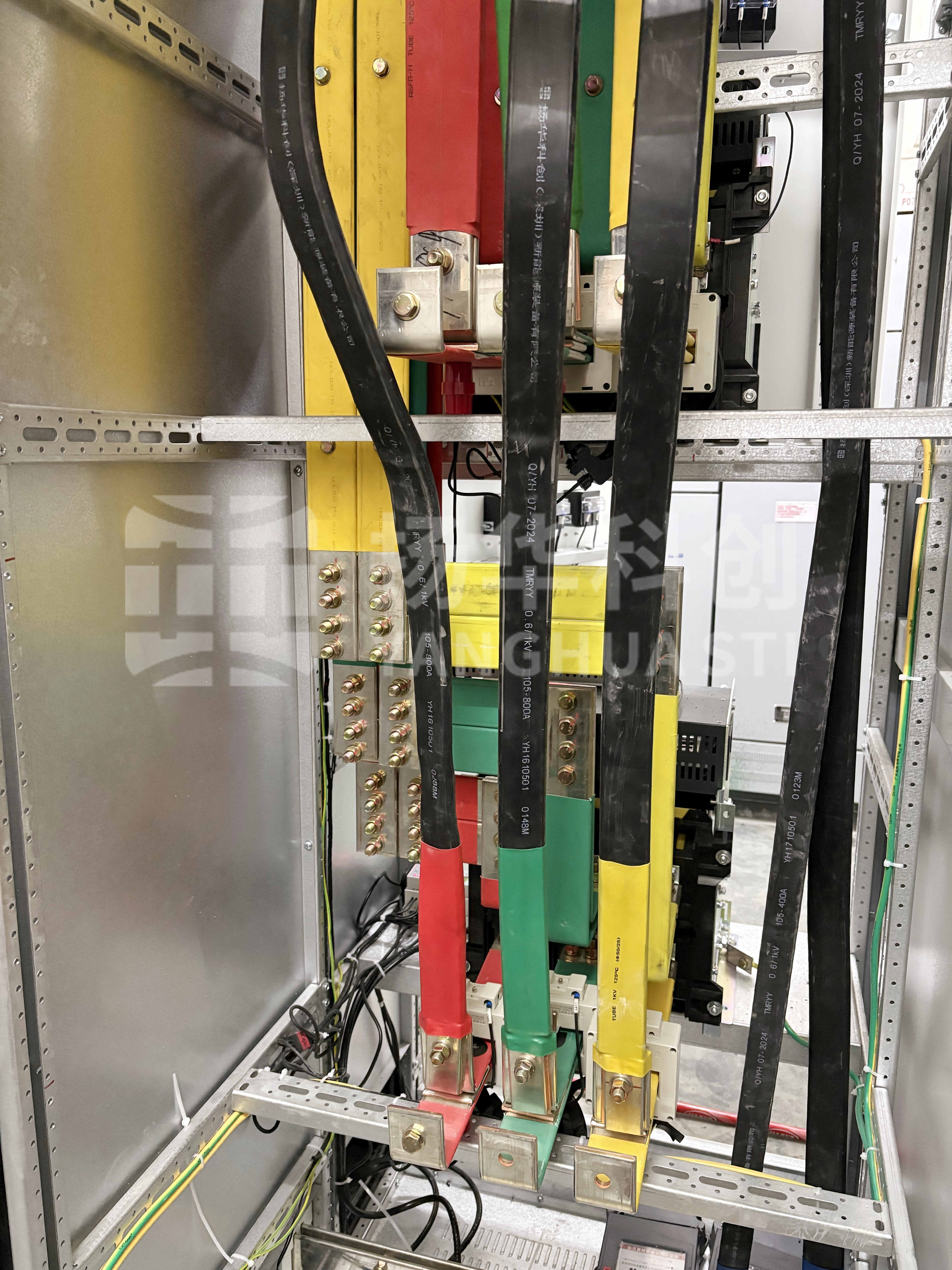

This project involved connecting power from the low-voltage power distribution room in Building A to the main distribution box in the workshop of Building B, spanning a distance of approximately 100 meters. The installation required a combination of indoor cable bridge laying and outdoor buried pipe routing. Yanghua 1000A and 800A flexible busbars were selected for this application. A single flexible busbar unit was capable of meeting the high current-carrying demand without requiring multiple intermediate joints. The IP68-rated protection ensured that on-site buried pipe installation was convenient and efficient, even under challenging outdoor conditions. The flexible busbar system demonstrated stable operational performance across indoor and outdoor cross-scenario connections, effectively securing reliable power supply for the workshop operations.
Project Background & Challenges
The project required a 100-meter power transmission link between two separate buildings across both indoor bridge and outdoor buried pipe environments, demanding high current capacity without multiple joints while maintaining protection against moisture and underground conditions.
- Long-distance 100-meter power transmission between two separate buildings requiring uninterrupted conductor runs
- Mixed installation environment combining indoor cable bridge trays and outdoor buried piping within a single transmission path
- High current-carrying requirements (1000A and 800A) that would typically require multiple parallel cable runs with numerous joints
- Outdoor buried pipe sections demanding high ingress protection against moisture, soil, and environmental contaminants
Solution
Yanghua deployed 1000A and 800A IP68-rated flexible busbars that provided single-unit high current capacity, eliminating the need for intermediate splices across the full 100-meter span. The IP68 protection rating ensured safe and reliable operation in both indoor bridge trays and outdoor buried conduits.
- Deployed single-unit 1000A and 800A Yanghua flexible busbars capable of full-span current transmission without intermediate splices or joints
- Utilized IP68-rated flexible busbar construction to ensure complete protection in buried pipe environments against water ingress and soil corrosion
- Leveraged the compact form factor of flexible busbars for seamless routing through both indoor bridge trays and outdoor underground conduits
- Achieved stable cross-scenario electrical performance with a single product type, simplifying inventory and installation logistics
